Sold

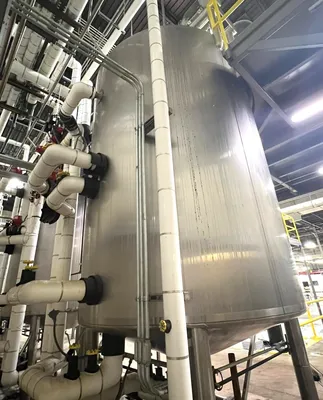

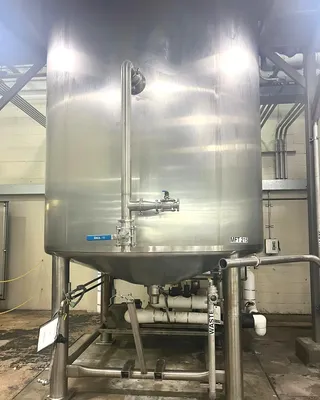

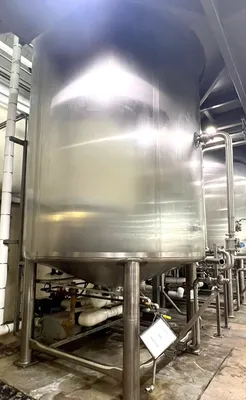

4000 Gallon Feldmeier Stainless Steel Jacketed Tank / Kettle with Double Motion Scrape Mixer

TANKS / KETTLES
Manufacturer:
FELDMEIER
Model:
4000 Gallon Jacketed Mix Kettle with Scrape
Stock #:
2188
Serial #:
15E0671

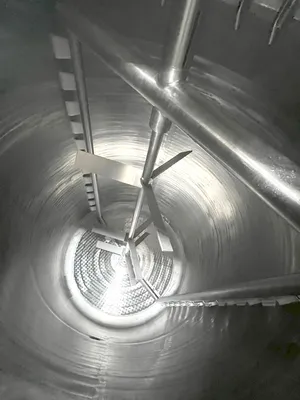

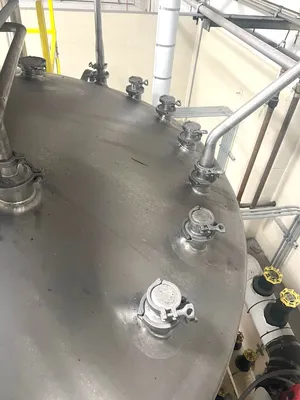

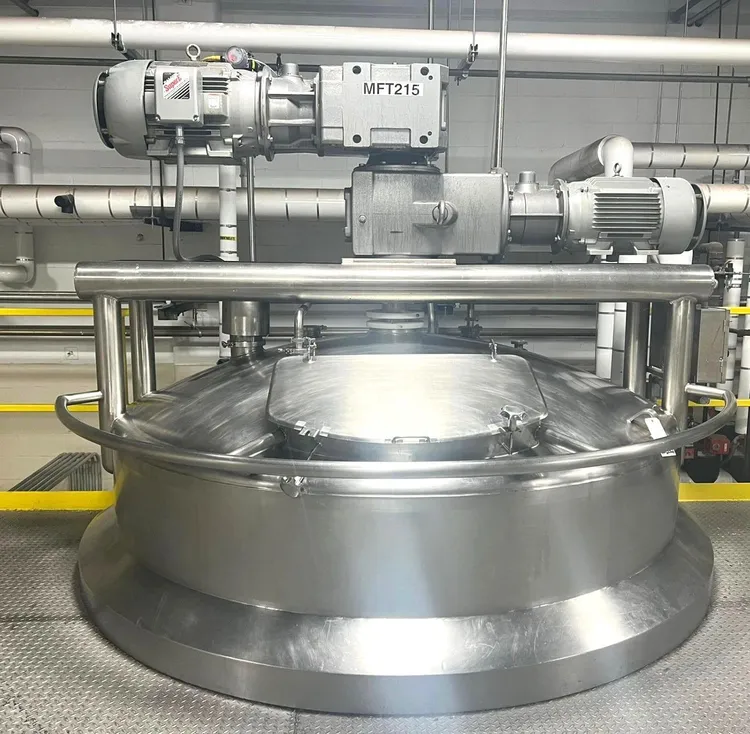

4000 Gallon Feldmeier Stainless Steel Jacketed Tank / Kettle with Double Motion Scrape Agitation. Jacketed for 150 PSI @ 350 Deg.F.. Dished Bottom & Center Bottom Outlet w/ Flush Mount Bottom Ball Valve. Insulated & Stainless Steel Sheathed, Counter Rotating Top Seal Double Motion Agitation w/ Side Wall and Bottom Scraping, Stacked Drives. Scrape mixer is 25 HP, 230/460 V, 1770 RPMi / 18 RPMo. Center turbine agitator is 40 HP, 230/460 V, 1775 RPMi / 60 RPMo. Spray Ball, Partial Hinged Cover, Stainless Steel Channel Bridge Mount Design. S/N-15E0671. Last used in sanitary application.
Diameter8'8'
Lgth./ Height11'6"11'6"
Material316L STAINLESS STEEL316L STAINLESS STEEL
Gallons4000 gal
Dimensions255" lgth. x 112" wide x 117" ht.255" lgth. x 112" wide x 117" ht.
Weightapprox 8000 LBSapprox 8000 LBS
