Sold

Perry 500 Sq.Ft. Shell and Tube Heat Exchanger Stainless Steel tubes

HEAT EXCHANGERS
Model:
18-471 FTSX Shell and Tube Heat Exchanger
Stock #:
2154
Serial #:
15241

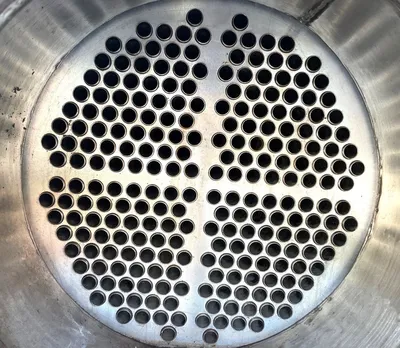

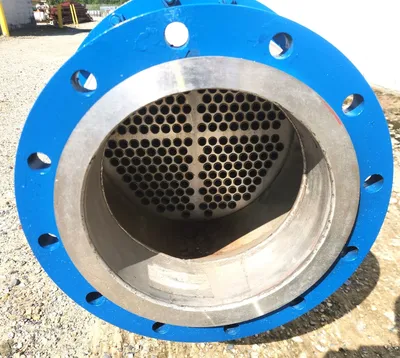

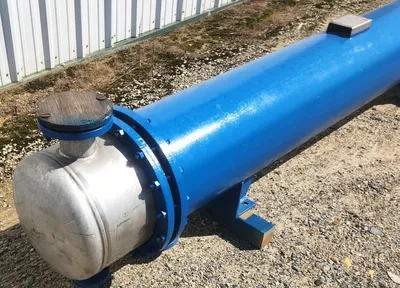

Unused 471 Sq.Ft. Shell and Tube Heat Exchanger. Model: 18-471 FTSX. Stainless Steel TUBES: (240) 3/4" x 10' lgth. Tubes Rated 75 PSI/Full Vacuum @ -20/320 Deg.F.. SHELL is 18" Dia. rated 75 PSI @ -20/320 Deg.F.. Shell openings 2 - 4". Tube Inlet/Outlet 12", 4", 2". National Board No.: 5659. 12'6" Overall length. Unit appears UNUSED.
FT2471 ft
Tube PSIG75/FV75/FV
Tube Deg320320
Tube Mat304 Stainless Steel304 Stainless Steel
TypeSHELL and TUBESHELL and TUBE
Shell PSIG7575
Shell Deg320320

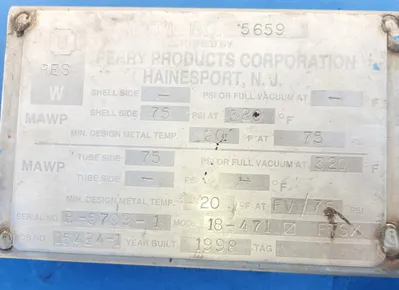

StampedNB# 5659NB# 5659
Shell MatCarbon SteelCarbon Steel
