3000 Gallon Jacketed pressure vessel. High pressure, rated 500/FV PSI
Have one to sell?
ConditionUsed
1 available

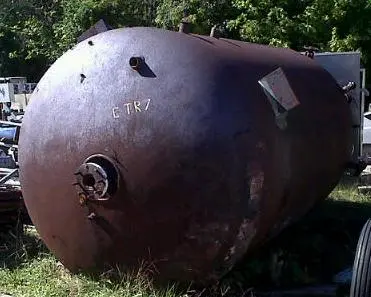

3000 Gallon Jacketed pressure vessel. High pressure, rated 500/FV PSI. Unit has full outer jacket and also internal coils: (19) rows 2" internal pipe coil. Top Openings 1-12, 1-3, 1-18w/bolted cover, 7-2, 4-4, 1-6. Has 3 Center bottom outlet.
3000 Gallon Jacketed pressure vessel. High pressure, rated 500/FV PSI. Unit has full outer jacket and also internal coils: (19) rows 2" internal pipe coil. Top Openings 1-12, 1-3, 1-18w/bolted cover, 7-2, 4-4, 1-6. Has 3 Center bottom outlet.
Imperial
| Gallons | 3000 gal |
| PSIG | 500/FV |
| ID - Inches | 78 in |
| Length | 11' |
| Temp (F) | 400 |
| Material | Carbon Steel (CS) |
| Vert/Horiz | V |
| Stamped | NB 120 |
| Weight | ~28,000 lbs. |
