3000 Gallon high pressure reactor vessel with jacket and internal coils
Have one to sell?
ConditionUsed
1 available

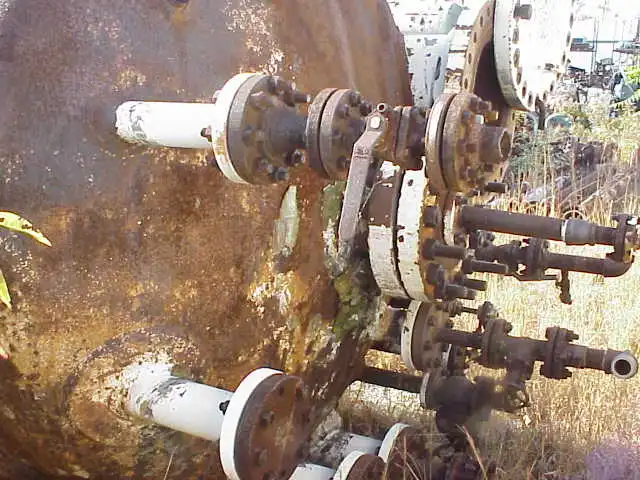

3000 Gallon high pressure Carbon Steel reactor vessel with jacket and internal coils: (19) rows 2" internal pipe coil. Rated 500 PSI/Full Vacuum @ 400 Deg.F. internal. Jacket rated 90 PSI/FV @ 400 Deg.F.. Top Openings 1-12, 1-3, 1-18w/bolted cover, 7-2, 4-4, 1-6. Has 3 Center bottom outlet.
3000 Gallon high pressure Carbon Steel reactor vessel with jacket and internal coils: (19) rows 2" internal pipe coil. Rated 500 PSI/Full Vacuum @ 400 Deg.F. internal. Jacket rated 90 PSI/FV @ 400 Deg.F.. Top Openings 1-12, 1-3, 1-18w/bolted cover, 7-2, 4-4, 1-6. Has 3 Center bottom outlet.
Imperial
| Gallons | 3000 gal |
| Dia. Inches | 78 |
| Length (T/T) | 11 |
| Shell PSIG | 500/FV |
| Shell (F) | 400 |
| Shell Material | Carbon Steel |
| Jacket PSIG | 90/FV |
| Jacket (F) | 400 |
| Jacket Mat | Carbon Steel |
| Stamped | NB 120 |
| Weight | ~28,000 |
