103 Liter (25 Gallon) Used Jacketed Stainless Steel Full Vacuum Rated Reactor / Tank
Have one to sell?
ConditionUsed
46 available

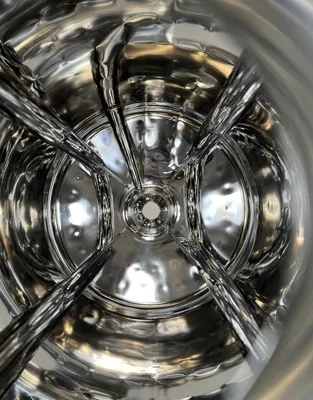

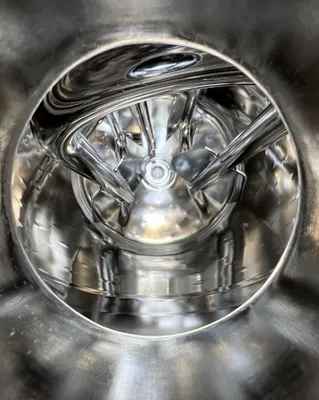

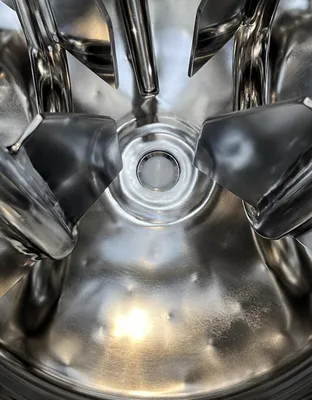

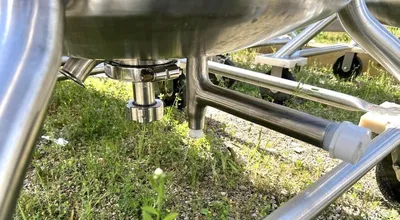

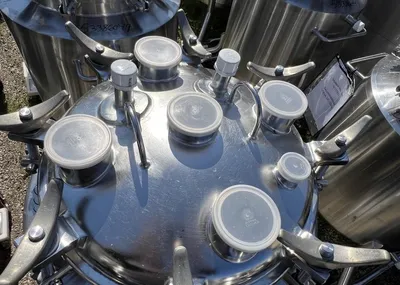

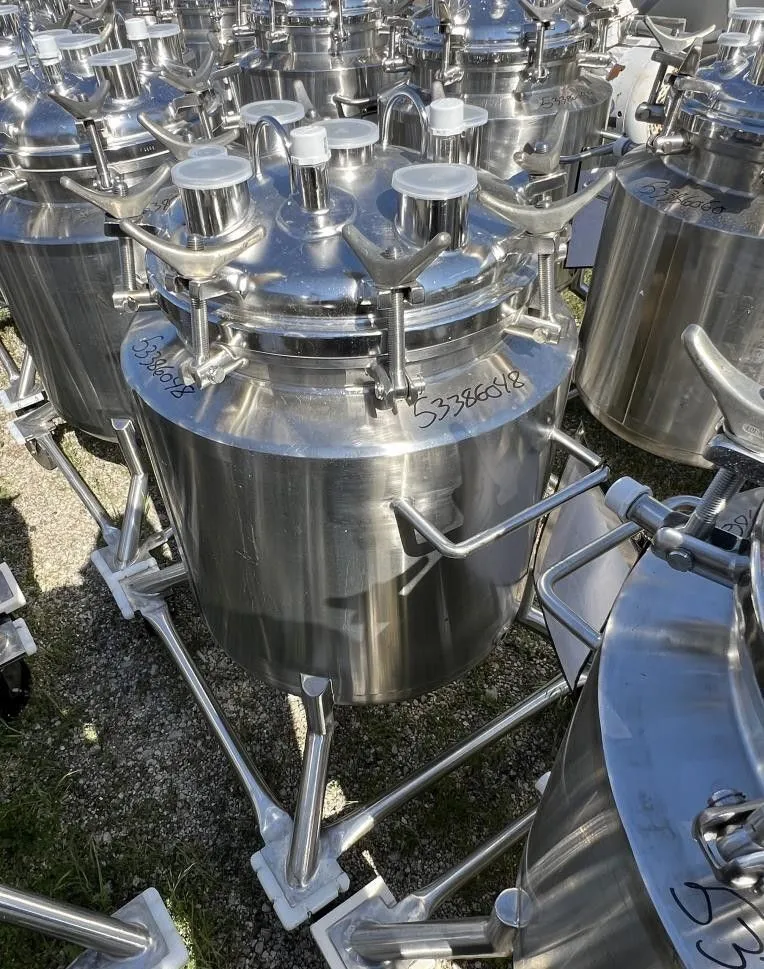

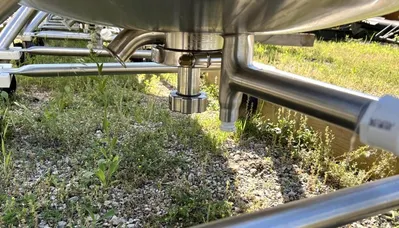

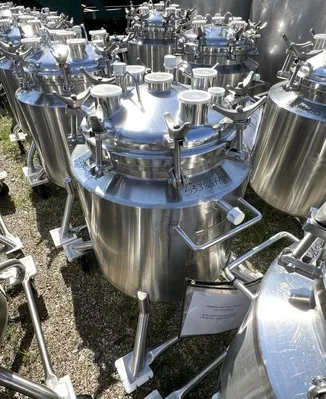

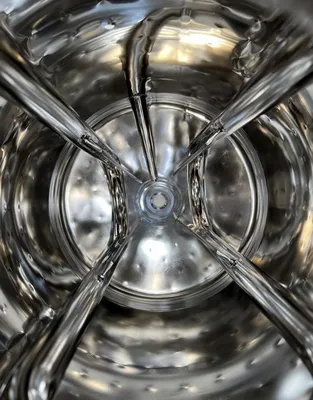

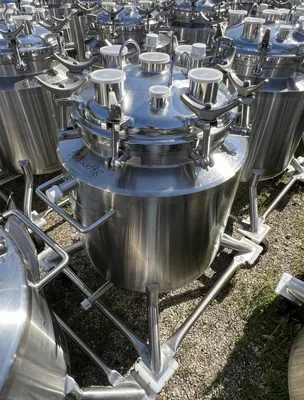

(46) 103 Liter (27.2 Gallon) Used Jacketed Stainless Steel Full Vacuum Rated Reactor / Tank on Casters. Made by Precision Stainless. 316L Stainless Steel, Vertical. Approximate 20" diameter x 26" straight side. Dished removable top head, dished bottom head. 304L Stainless steel dimple jacket, rated 100psi / FV at -20 to 250 degrees F. Internal rated 45psi / FV at -20 to 250 degrees F. Openings: (5) 3", (1) 1-1/2". (2) 1". 1-1/2" Center bottom outlet with approximately 8-10" discharge height. Also, has internal coils for heating/cooling with internal baffles. Mounted on (4) legs with casters. All units have NB#'s.
(46) 103 Liter (27.2 Gallon) Used Jacketed Stainless Steel Full Vacuum Rated Reactor / Tank on Casters. Made by Precision Stainless. 316L Stainless Steel, Vertical. Approximate 20" diameter x 26" straight side. Dished removable top head, dished bottom head. 304L Stainless steel dimple jacket, rated 100psi / FV at -20 to 250 degrees F. Internal rated 45psi / FV at -20 to 250 degrees F. Openings: (5) 3", (1) 1-1/2". (2) 1". 1-1/2" Center bottom outlet with approximately 8-10" discharge height. Also, has internal coils for heating/cooling with internal baffles. Mounted on (4) legs with casters. All units have NB#'s.
Imperial
| Gallons | 25 gal |
| Dia. Inches | 20" |
| Length (T/T) | 26" |
| Shell PSIG | 45/FV |
| Shell (F) | -20 to 250 |
| Shell Material | 316L STAINLESS STEEL |
| Jacket PSIG | 100/FV |
| Jacket (F) | -20 to 250 |
| Jacket Mat | STAINLESS STEEL |

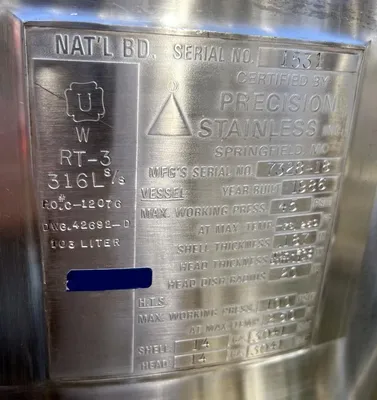

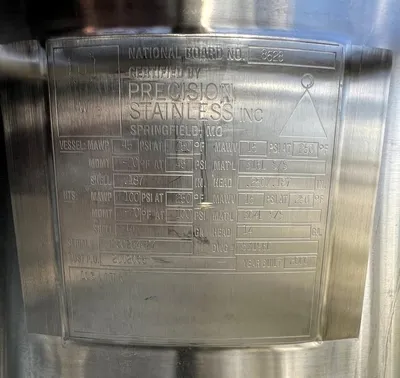

| Stamped | NB# |
